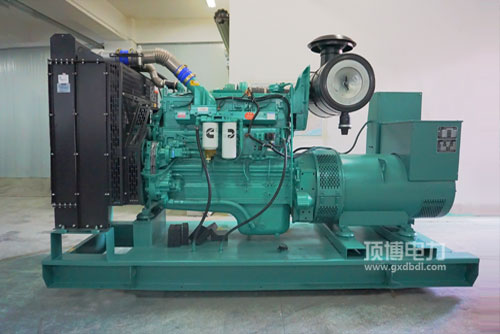

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用启驱动力燃料资金性好: 为先进的燃料调控体系，独特的STC、ESTC 分等级调控体系，特俗的设计的连杆顶上燃燒室，高压变压器喷射出燃料，充沛吸雾，燃燒充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用汽车发驱力瞬态机械性能不错: 非凡的汽车发驱力全局构思，互相配合康明斯多样的EFC软件系统，抑制的精密性好，没有响应時间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用启心理升电功率高: 产品设计的紧促.内部结构布设合情合理，运营平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50需要满足我国非道路上第一时段.及中美洲Tier2. Tier 3直接排放规范标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件都有机会得到性好， 起行为程序运行及定期检查清洁体验，直接费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率范围图 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量管理 Dry Weight   940kg

224-310KW康明斯电站用发起机的性能：质量分数小， 进行压缩比较高， 格珊环境蒸汽加热，便于开机，运动车截电源模块的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起心理主要参数	可用工率(kW)Prime Power	自备效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
